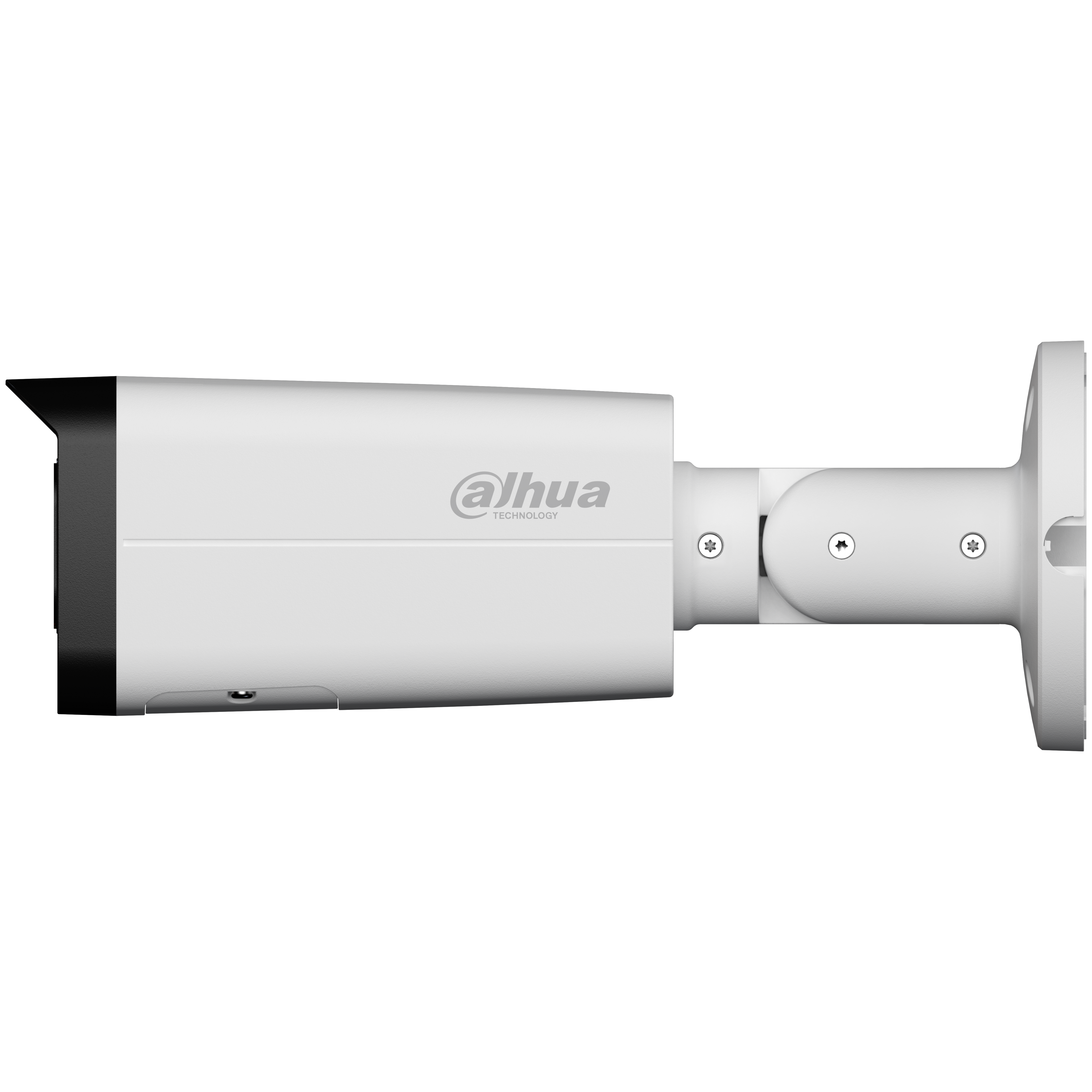

Dahua DH-IPC-HFW3449TP-ZS-IL – 4MP Vari-Focal Bullet Camera with Smart Dual Light, AI & Active Deterrence

Dahua DH-IPC-HFW3449TP-ZS-IL – 4MP Vari-Focal Bullet Camera with Smart Dual Light, AI & Active Deterrence

The Dahua DH-IPC-HFW3449TP-ZS-IL is a high-performance 4MP bullet camera from the WizSense series, designed for professional surveillance applications. It combines advanced AI features, smart dual illumination, and active deterrence capabilities in a robust, weather-resistant housing.

High-Quality Imaging

Equipped with a 1/2.9" CMOS sensor, this camera delivers high-definition images with a maximum resolution of 2688 × 1520 at 25/30 fps. The motorized vari-focal lens (2.7–13.5 mm) allows for flexible field of view adjustments, ranging from 104° to 29° horizontally.

Smart Dual Illumination

The camera features built-in IR and warm light LEDs, providing up to 60 meters of IR illumination and 60 meters of warm light. The smart dual light technology automatically switches between IR and warm light based on the scene, ensuring optimal image quality and reducing light pollution.

Advanced AI Features

With AI-powered functions such as perimeter protection, smart motion detection (SMD 4.0), and AI Scene Self-adaptation (AI SSA), the camera accurately detects and classifies human and vehicle targets, minimizing false alarms and enhancing security efficiency.

Active Deterrence

The camera includes red and blue flashing lights and a built-in speaker for audible warnings, actively deterring intruders upon detection. Customizable voice alerts can be uploaded to suit specific security needs.

Robust and Reliable

Designed for outdoor use, the camera boasts IP67 weather resistance. It operates reliably in temperatures ranging from -30°C to +60°C and supports both 12V DC and PoE power options.

Key Features:

• 4MP resolution (2688 × 1520) at 25/30 fps
• Motorized vari-focal lens (2.7–13.5 mm)
• Smart dual illumination with IR and warm light LEDs
• AI-powered perimeter protection and SMD 4.0
• Active deterrence with flashing lights and voice alerts
• Built-in microphone for audio recording
• Supports microSD card up to 512GB
• IP67 rated for outdoor durability
• Power options: 12V DC or PoE (802.3af)

What's in the Box?

• Dahua DH-IPC-HFW3449TP-ZS-IL camera
• Mounting bracket and installation hardware
• Waterproof connector cover
• Mounting template and hex key
• Quick start guide and warranty card

This camera is ideal for applications requiring high-quality imaging, intelligent analytics, and proactive deterrence in a single, easy-to-install device.

Model:
- DH-IPC-HFW3449TP-ZS-IL


Image Sensor:
- 1/2.9" CMOS
- 4MP resolution (2688 × 1520 @ 25/30 fps)


Lens:
- Motorized vari-focal lens (2.7–13.5 mm)
- Horizontal field of view: 104°–29°
- Vertical field of view: 54°–16°
- Diagonal field of view: 125°–34°


Illumination:
- Smart dual illumination: IR and warm light LEDs
- IR range: up to 60 meters
- Warm light range: up to 60 meters
- Minimum illumination: 0.005 lux @ F1.4 (color), 0.0005 lux @ F1.4 (B/W), 0 lux with IR on


Image Enhancement:
- Wide Dynamic Range (WDR): 120 dB
- 3D Noise Reduction (NR)
- Backlight Compensation (BLC)
- Highlight Compensation (HLC)
- AI Scene Self-adaptation (AI SSA)


Video:
- Compression: H.265, H.264, MJPEG
- Smart codecs: AI H.265, AI H.264, Smart H.265+, Smart H.264+
- Frame rate: up to 30 fps at 4MP


AI & Detection:
- Smart Motion Detection (SMD) 4.0
- Perimeter protection: intrusion and tripwire detection with human/vehicle classification
- AI Scene Self-adaptation (AI SSA)
- AcuPick for quick target search


Audio:
- Built-in microphone
- Audio compression: G.711a, G.711Mu, PCM, G.726, G.723


Active Deterrence:
- Red and blue flashing lights
- Built-in speaker for voice alerts
- Customizable voice messages


Storage:
- microSD card slot supporting up to 512GB


Interfaces:
- RJ-45 network port (10/100 Base-T)


Power:
- 12V DC
- PoE (802.3af)


Housing:
- IP67 weatherproof
- Suitable for indoor and outdoor use


Operating Conditions:
- Temperature: -30°C to +60°C
- Humidity: ≤ 95%


Dimensions & Weight:
- Dimensions: 239 mm × 91 mm × 91 mm
- Weight: 0.835 kg
